100W IP66 IK08 3000-5700K AC100-277V Explorer Family LED Street Light for Highway/Street/Roadside
Descriptions:
Equipped with high-quality CREE3030/5050 light source and Meanwell/Sosen driver brands. This street light has a system power of 93-102 watts and an LED power of 84-90 watts, delivering a luminous flux of 10900-12300 lumens and a color temperature range of 3000K-5700K with a CRI of 70+.
The light distribution of this street light is Type III Medium, providing optimal lighting for sidewalks and small streets. The driver output voltage is 32-54VDC with an output current of 2000mA, ensuring stable and efficient performance with a power factor of greater than 0.9 and a THD of less than 20%.
The street light also features surge protection with CM:10KV, DM:6KV (Sosen) and CM:6KV, DM:4KV (Meanwell), providing enhanced durability and reliability in harsh weather conditions. With an IP66 rating, this street light is suitable for outdoor use and can withstand temperatures ranging from -20°C to +60°C.
The power cable is 1.5m long and made of H05RN-F 3X1.0 material for durability and safety. Overall, the Mingfeng Lighting LED street light is a reliable and energy-efficient solution for lighting up your streets and sidewalks.
Specifications:
| Model No. | MF-S19A75H | MF-S19A75H-T3M | MF-S19A100H | MF-S19A100H-T3M |
| Light Source | CREE3030 | CREE5050 | CREE5050 | CREE5050 |
| System Power | 70-78 | 70-78 | 90-102 | 90-102 |
| LED Power | 65-69 | 65-69 | 84-90 | 84-90 |
| Luminous Flux | 8400-9400 | 8400-9400 | 10900-12300 | 10900-12300 |
| CCT | 3000K-5700K | 3000K-5700K | 3000K-5700K | 3000K-5700K |
| CRI | 70+ | 70+ | 70+ | 70+ |
| Light Distribution | Type II Short | Type III Medium | Type II Short | Type III Medium |
| Driver Brand | Meanwell/Sosen | Meanwell/Sosen | Meanwell/Sosen | Meanwell/Sosen |
| Input Voltage | AC100-277V 50-60Hz | AC100-277V 50-60Hz | AC100-277V 50-60Hz | AC100-277V 50-60Hz |
| Driver Output Voltage(VDC) | 32-54 | 32-54 | 32-54 | 32-54 |
| Driver Output Current(mA) | 1400 | 1400 | 2000 | 2000 |
| PF | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <20% | <20% | <20% | <20% |
| CRI | >70 | >70 | >70 | >70 |
| Surge Protection | CM:10KV, DM:6KV(Sosen)
CM:6KV, DM:4KV(Meanwell) | CM:10KV, DM:6KV(Sosen)
CM:6KV, DM:4KV(Meanwell) | CM:10KV, DM:6KV(Sosen)
CM:6KV, DM:4KV(Meanwell) | CM:10KV, DM:6KV(Sosen)
CM:6KV, DM:4KV(Meanwell) |
| Power Cable | 1.5m H05RN-F 3X1.0 | 1.5m H05RN-F 3X1.0 | 1.5m H05RN-F 3X1.0 | 1.5m H05RN-F 3X1.0 |
| IP | IP66 | IP66 | IP66 | IP66 |
| Working Temp. | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10-90RH% | 10-90RH% | 10-90RH% | 10-90RH% |

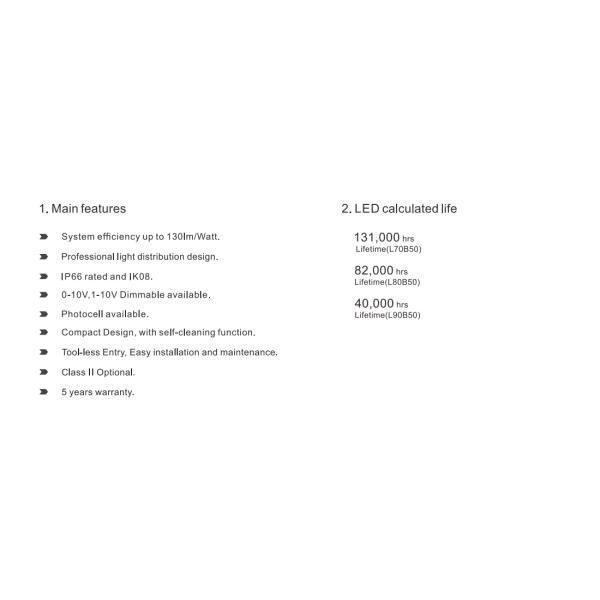

Main Features:
Accessories:
Product Dimensions(mm):
Light Distribution Curve:

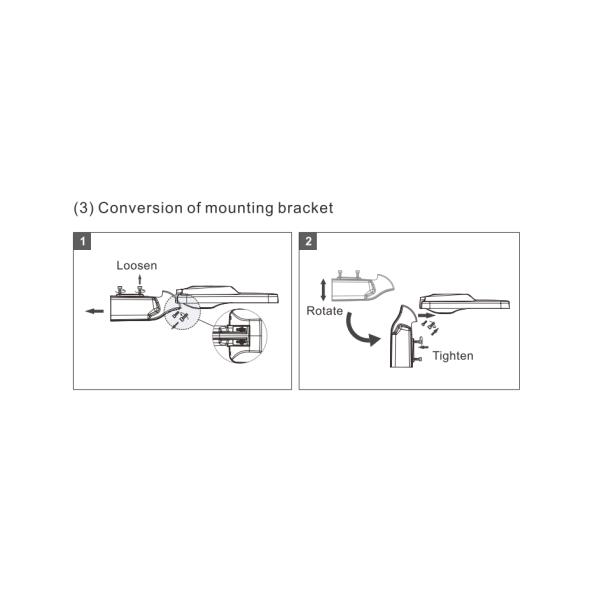

Installation Instructions:
Where to Use:
Ideal for highways, viaducts, urban streets, overpasses, sidewalks, squares, schools and other outdoor lighting place.
Package & Shipments:
FAQ:
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
